Quintic USB3 High-Speed LIVE Camera - 4 MPixel

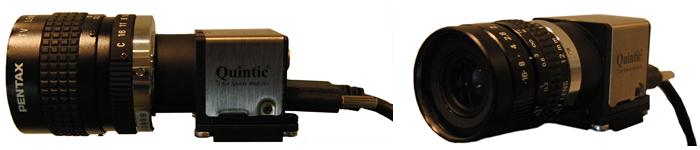

Quintic USB3 4MP Camera

Images for illustrative purposes only

Compatible with Quintic Coaching & Biomechanics

USB 3.0, CMOS, 85 fps, 2048 x 2048, 4 MPixel, 1", CMOSIS, Global shutter
Camera comes with Tripod Mount with options for C-Mount lens.
C-Mount lenses are required in addition to the camera (different zoom & focal lengths)
Optional frame rate between 75 and 1000 frames per second (with varying image dimensions)

Quintic USB3 Camera

The example image below was taken using the Quintic USB3 High-Speed LIVE Camera - 4 MPixel for the use in Equine Biomechanics. The video was recoreded at 300fps with a image size of 1300 x 540.
To download this video along with other 4MP sample videos please click here

Quintic

Quintic USB3 4 MPixel Camera highlights include :

  • 75 frames per second avi video capture (2048 x 2048 image size dimensions)
  • 100 frames per second avi video capture (2048 x 1550 image size dimensions)
  • 200 frames per second avi video capture (2048 x 762 image size dimensions)
  • 300 frames per second avi video capture (2048 x 504 image size dimensions)
  • 400 frames per second avi video capture (2048 x 376 image size dimensions)
  • 500 frames per second avi video capture (2048 x 298 image size dimensions)
  • Optional frame rate between 75 and 1000 frames per second (with varying image dimensions can be set to personal preference using AOI)
  • Fully integrated capture software with Quintic Coaching & Biomechanics
  • Windows Vista, Seven, Eight, Ten
  • Quintic Install Shield Software program
  • LIVE Camera capture - (Note: No tapes required) - Power via the laptop (no mains power required)
  • 4 megapixel 1" CMOS sensor
  • Monochrome (Black & White)
  • Manual Shutter Speed Options 1/50---1/12000 sec : Ideal for Quintic Biomechanics / Coaching Automatic Tracking
  • With an extremely large optical format of 1", the sensor delivers large pixels and is extremely low-noise and sensitive to light.
  • USB3 4m cable length direct to your computer
  • Housing Size: 5.0cm x 3.5cm x 3.5cm (L x W x H in mm)
  • Weight 60gms
  • C-Mount Lens are required in addition to the camera - see Quintic Lens C-mount page for lens specifications

For further information and for orders please Contact Us
